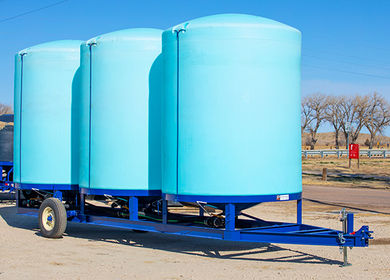

Cone Bottom Trailers

JD Skiles invented the original cone bottom in 1984. The trailer includes multiple 3,000 gallon heavy duty tanks that completely drain. When the tanks are empty the hydraulic hand pump allows you to easily lower the trailer to rest in the field and raise it for transport as needed. The cone bottom trailer is great for storing fertilizer in the field.

Additional Features and Options:

  • Single, Double, or Triple Cone Bottom Trailers

  • Trailer Colors can be Customized

  • 2" and 3" Plumbing Options

Click Here to view videos about our cone bottom trailers.

6000 Gallon Cone Bottom Trailer

Comes Standard With:​​

  • 6" Channel Iron Frame​ - 21' Overall Length

  • 5K 15" Topwind Jack

  • ST235 80/R16 10 Ply Radial Tires

  • Adjustable Clevis Hitch

  • 3500lb 6 Bolt Hub

  • DOT 3/8 Safety Chains

  • Hydraulic Hand Pump & 3X12 Hydraulic Cylinder

  • 2) 15° Cone Bottom 3000 Gal. ACE Tank -   5 Yr. Warranty

Trailer Options:

  • Lights

  • 2" Ball Hitch - 2 5/16" Ball Hitch

  • Tank Color: Blue, Grey, Yellow, White, & Black

Plumbing Options:

  • 3" Bottom Fill Plumbing​

  • 2" Outlet

  • 3" Outlet

  • 3" Filter

  • Recirculation

9000 Gallon Cone Bottom Trailer

Comes Standard With:​​

  • 6" Channel Iron Frame​ - 30' Overall Length

  • 5K 15" Topwind Jack

  • ST235 80/R16 10 Ply Radial Tires

  • Adjustable Clevis Hitch

  • 3500lb 6 Bolt Hub

  • DOT 3/8 Safety Chains

  • Hydraulic Hand Pump & 3X12 Hydraulic Cylinder

  • 3) 15° Cone Bottom 3000 Gal. ACE Tank - 5 Yr. Warranty

Trailer Options:

  • Lights

  • 2" Ball Hitch - 2 5/16" Ball Hitch

  • Tank Color: Blue, Grey, Yellow, White, & Black

Plumbing Options:

  • 3" Bottom Fill Plumbing​

  • 2" Outlet

  • 3" Outlet

  • 3" Filter

  • Recirculation
