Gooseneck Trailers

Manufactured by JD Skiles, a gooseneck trailer can be used to store and transport liquid fertilizer, agriculture chemicals, water, and any other liquid at a higher capacity. Gooseneck trailers are an advisable option for farmers and ranchers who want additional stability, storage, and durability with their liquid trailers. Several different tank and trailer options are available and customizable. Contact us with your specific needs.

gooseneck-cone-bottom-trailer

Click Here to view a gooseneck trailer walk around video from JD Skiles.

1300 Gallon Gooseneck Leg Tank Nurse Trailer

Comes Standard With:

  • 8X2X1/4" Square Tubing Frame​

  • DOT 3/8 Safety Chains

  • 8K Axle Package 8 Bolt

  • Double H/L 60K Jack Set

  • Electric Brake (1 Axle)

  • Fenders

  • ST235 85/R16 14 Ply Radial Tires

  • LED Lights

  • 2 5/16" Gooseneck Coupler

  • 4X8 Shuttle Deck

  • Storage Between Jacks

Trailer Options

  • 2nd Axle Braked

  • 4X4 Top Shuttle Gooseneck

  • Tank Color: Blue, Grey, Yellow, White, & Black

  • Electric over Hydraulic Jack

Plumbing Options:

  • 2" Inlet/Outlet​

  • 3" Inlet/2" Outlet

  • 3" Inlet/Outlet

  • 3" Filter

  • Recirculation

  • 15' Outlet Hose

  • 15 Gal./30 Gal. Inductor Tank

  • Venturi System

Gooseneck Nurse Trailer

1300 Gallon Gooseneck Cone Bottom Nurse Trailer

Comes Standard with:

  • 8X2X1/4  Square Tubing​ Frame

  • ST235 85/R16 14 Ply Radial Tires

  • DOT 3/8 Safety Chains

  • 8K Axle Package 8-Bolt

  • Double H/L 60K Jack Set

  • Electric Brakes (1 Axle)

  • Fenders

  • LED Lights

  • 2 5/16 Gooseneck Coupler

  • Crossover Step to Lid

  • 15° Cone Bottom 1300 Gal. ACE Tank - 5 Yr. Warranty

  • 4X8 Shuttle Deck

  • Storage between Jacks

Trailer Options:​​​​

  • 2nd Axle Braked

  • Storage under Crossover

  • 4X4 Top Shuttle Gooseneck

  • Tank Color: Blue, Grey, Yellow, White, & Black

  • Electric over Hydraulic Jack

Plumbing Options:

  • 2" Inlet/Outlet​

  • 3" Inlet/2" Outlet

  • 3" Inlet/Outlet

  • 3" Filter

  • Recirculation

  • 15' Outlet Hose

  • 15 Gal./30 Gal. Inductor Tank

  • Venturi System

  • Valve Rod

"These trailers are rugged and dependable with no apparent rust, repairs or paint failure after hauling liquid fertilizer for 4 years." -Erich

Liquid Gooseneck Cone Bottom Trailer
gooseneck-liquid-trailer
Gooseneck Trailer Cone Bottom Tank
1300 Gallon Gooseneck Trailer
Jacks on a Liquid Gooseneck Trailer
Gooseneck Cone Bottom Trailer KS
Gooseneck Liquid Trailer Back View
Gooseneck Liquid Trailer
1300 Gooseneck Liquid Trailer
1/2

1610 Gallon Gooseneck Nurse Trailer

Comes Standard with:

  • 8 X 2 X 1/4  Square Tubing​ Frame

  • ST 235/75 R 17.5 Tires

  • DOT 3/8 Safety Chains

  • 2) 10K Axles

  • Double H/L 60K Jack Set

  • Electric Brakes (1 Axle)

  • Fenders

  • LED Lights

  • 2 5/16 Gooseneck Coupler

  • 1610 Gallon Full Drain Leg Tank
    ACE Tank - 5 Yr. Warranty

  • 4X8 Shuttle Deck

  • Storage between Jacks

Trailer Options:​​​​

  • 2nd Axle Braked

  • Swing Out Hose Boom

  • 4X4 Top Shuttle Gooseneck

  • Tank Color: Blue, Grey, Yellow, White, & Black

  • Electric over Hydraulic Jack

Plumbing Options:

  • 2" Inlet/Outlet​

  • 3" Inlet/2" Outlet

  • 3" Inlet/Outlet

  • 3" Filter

  • Recirculation

  • 15' Outlet Hose

  • 15 Gal./30 Gal. Inductor Tank

  • Venturi System

  • Valve Rod

liquid-gooseneck-trailer-1610-gallon
1610-gallon-gooseneck-trailer
1/1

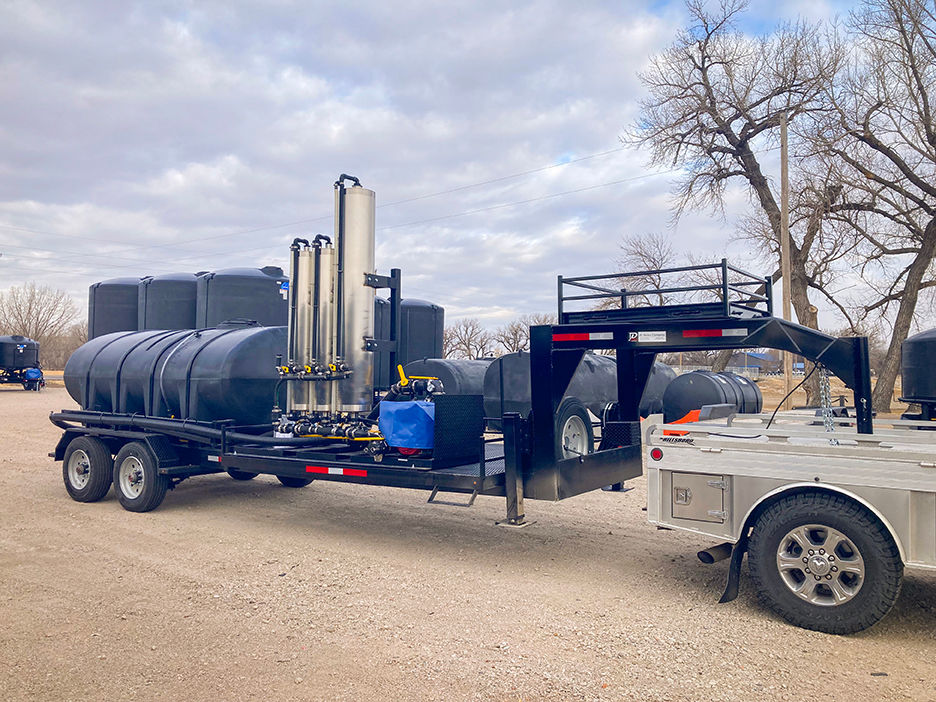

1610 Gallon Gooseneck Volumetric Nurse Trailer

Comes Standard with:

  • 8 X 2 X 1/4  Square Tubing​ Frame

  • ST 235/75 R 17.5 Tires

  • DOT 3/8 Safety Chains

  • 2) 10K Axles

  • Double H/L 60K Jack Set

  • Electric Brakes (1 Axle)

  • Fenders

  • LED Lights

  • 2 5/16 Gooseneck Coupler

  • 1610 Gallon Full Drain Leg Tank
    ACE Tank - 5 Yr. Warranty

  • 4X8 Shuttle Deck

  • Storage between Jacks

Trailer Options:​​​​

  • 2nd Axle Braked

  • Swing Out Hose Boom

  • 4X4 Top Shuttle Gooseneck

  • Tank Color: Blue, Grey, Yellow, White, & Black

  • Electric over Hydraulic Jack

Plumbing Options:

  • 2" Inlet/Outlet​

  • 3" Inlet/2" Outlet

  • 3" Inlet/Outlet

  • Recirculation

  • 15' Outlet Hose

  • Venturi System

  • Honda 13Hp Engine w/3" John Blue Pump

  • Driver or Passenger Side Volumetric Skid

  • 15 Gal SS Turbo Tank Inductor

  • Up to 3 Stainless Steel Tanks

  • Stainless Steel Tank Options:

    • 50 Gal.​

    • 40 Gal.

    • 35 Gal.

    • 20 Gal.

    • 15 Gal.

jd-skiles-gooseneck-trailer
jd-skiles-pitstop-system
1610 Gallon Gooseneck Trailer
Gooseneck Trailer 1610 Gallon
1/2

1750 Gallon Gooseneck Nurse Trailer

Comes Standard with:

  • 8 X 2 X 1/4  Square Tubing​ Frame

  • ST235 85/R16 14 Ply Radial Tires

  • DOT 3/8 Safety Chains

  • 3) 7K Axle Package 8-Bolt

  • Double H/L 60K Jack Set

  • Electric Brakes (2 Axles)

  • Fenders

  • LED Lights

  • 2 5/16 Gooseneck Coupler

  • 1750 Gal. Leg Tank ACE Tank - 5 Yr. Warranty

  • 4X8 Shuttle Deck

  • Storage between Jacks

Trailer Options:​​​​

  • 3rd Axle Braked

  • Swing Out Hose Boom

  • 4X4 Top Shuttle Gooseneck

  • Tank Color: Blue, Grey, Yellow, White, & Black

  • Electric over Hydraulic Jack

Plumbing Options:

  • 2" Inlet/Outlet​

  • 3" Inlet/2" Outlet

  • 3" Inlet/Outlet

  • 3" Filter

  • Recirculation

  • 15' Outlet Hose

  • 15 Gal./30 Gal. Inductor Tank

  • Venturi System

Gooseneck Liquid Farm Trailer
Gooseneck Liquid Trailer
Plumbing on Gooseneck Liquid Trailer
Gooseneck Liquid Trailer KS
Gooseneck Trailer Pump and Plumbing
Gooseneck Trailer 1750 Gallon
1750 Gallon Gooseneck Trailer
Turbo Tank on Gooseneck Trailer
Gooseneck Liquid Trailer
1/1

"We have a 1750 Gal. Nurse Trailer w/4 by 8 Shuttle that we used last spring that worked great." -Richard

"I want to take a moment and thank you for producing an excellent nurse trailer for our Ranch. We have now owned it for two seasons and it has met our needs without issues. An all-around great product at a reasonable price. Well worth the trip to Atwood. Thanks to you and all of the team for this great trailer." -David and Sue

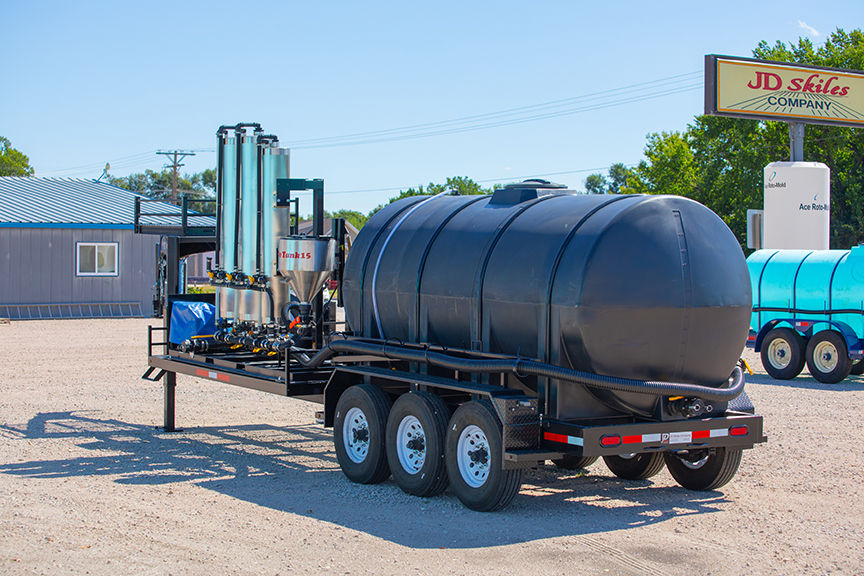

1750 Gallon Gooseneck Volumetric Nurse Trailer

Comes Standard with:

  • 8 X 2 X 1/4  Square Tubing​ Frame

  • ST235 85/R16 14 Ply Radial Tires

  • DOT 3/8 Safety Chains

  • 3) 7K Axle Package 8-Bolt

  • Double H/L 60K Jack Set

  • Electric Brakes (2 Axles)

  • Fenders

  • LED Lights

  • 2 5/16 Gooseneck Coupler

  • 1750 Gal. Leg Tank ACE Tank - 5 Yr. Warranty

  • 8X10 Shuttle Deck

  • Storage between Jacks

Trailer Options:​​​​

  • 3rd Axle Braked

  • Swing Out Hose Boom

  • 4X4 Top Shuttle Gooseneck

  • Tank Color: Blue, Grey, Yellow, White, & Black

  • Electric over Hydraulic Jack

Plumbing Options:

  • 2" Inlet/Outlet​

  • 3" Inlet/2" Outlet

  • 3" Inlet/Outlet

  • Recirculation

  • 15' Outlet Hose

  • Venturi System

  • Honda 13Hp Engine w/3" John Blue Pump

  • Driver or Passenger Side Volumetric Skid

  • 15 Gal SS Turbo Tank Inductor

  • Up to 3 Stainless Steel Tanks

  • Stainless Steel Tank Options:

    • 50 Gal.​

    • 40 Gal.

    • 35 Gal.

    • 20 Gal.

    • 15 Gal.

1750-gallon-gooseneck-trailer
Gooseneck Liquid Tender Trailer
1750 Gallon Gooseneck Trailer
Gooseneck Trailer 1750 Gallon
1750 Gallon Liquid Trailer
Gooseneck Liquid Trailer
Gooseneck Tender Trailer
Liquid Gooseneck Tender Trailer
Hydraulic Jack
Gooseneck Trailer Plumbing
Side View Gooseneck Liquid Trailer
Back View Gooseneck Liquid Trailer
1/2
